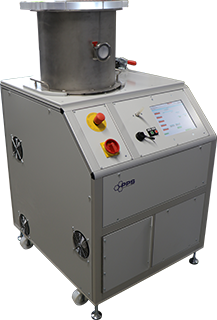

Labcoater Series 100

Perfect for laboratories and pilot production, this compact system combines mobility with ease of use. A movable frame, smaller cold trap, and replaceable vacuum chamber make it flexible and simple to clean. The removable transparent lid allows easy monitoring and handling of substrates, while automatic process control and network capability ensure efficient, reliable operation.

Key Features:

Exceptional Value

• Designed as a cost-effective solution without compromising functionality—ideal for small-scale production and laboratory operations.

Compact & Mobile Design

• Engineered with a space-saving footprint and built on a movable frame, this system offers flexible deployment and ease of relocation.

Interchangeable Process Chamber

• Features a replaceable vacuum chamber (customizable size starting from Ø 300 mm), enabling faster cleaning, maintenance, and versatility in coating different substrates.

Transparent, Removable Lid

• Equipped with a clear lid that can be removed—facilitating rapid visual inspection, straightforward substrate loading, and efficient unloading.

Automated Process Control & Network Integration

• Built-in automation streamlines operations, while network connectivity enables remote monitoring and seamless system integration.

Efficient Cooling System

• Includes a 4-liter electromechanical cool-trap to effectively manage condensation and maintain operational stability.

Robust Vacuum & Pump Setup

• Uses a DIN 25 ISO-KF vacuum connection for reliable vacuum integrity, venting via an electromagnetic solenoid valve, and a 10 m³/h pump for efficient evacuation.

Solid Physical Footprint

• Dimensions: L 850 mm × W 900 mm × H 1600 mm
• Weight: Approximately 80 kg
• Processing Volume: 30 liters

Power Compatibility

• Supports 3/N/PE AC power at 50 Hz, 400 V or 240 V, with a maximum power consumption of 8.5 kW—ensuring compatibility with diverse laboratory and production environments.

Low-Plasma Configuration

• This model is offered without a built-in plasma source, making it a simplified and cost-efficient choice for applications not requiring plasma treatment

Technical Data:

• Dimensions: L: 850mm W: 900mm H: 1600mm
• Weight: 80 KG
• Volume: 30 Liter
• Process chamber: custom chamber size (starting from Ø 300mm)
• Cooling system: 4 liter (electromechanical Cool-trap)
• Vacuum connection: DIN 25 ISO-KF
• Venting: electromagnetic solenoid valve
• Pump system: 10m³/h
• Electrical connection: 3/N/PE AC 50Hz 400 V / 240 V, max. 8.5 KW
