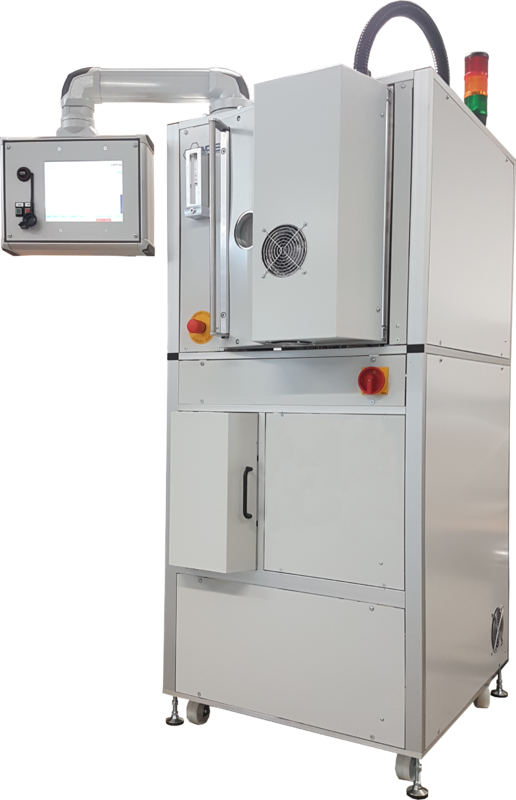

Labcoater Series 300

The Labcoater is the ideal coating system for laboratories and small production teams. With four chamber sizes starting at 25 liters, optional equipment, and a built-in plasma source, it adapts seamlessly to your needs. Also available in a cleanroom version, the Labcoater delivers reliable performance in a compact, versatile design.

Key Features:

Versatile Laboratory & Small-Scale Production Solution

• Designed for both laboratory environments and production facilities, this system is particularly well-suited for smaller companies and production teams.

Built-in Plasma Source for Surface Pre-Treatment

• Integrates a 2.45 GHz, 600 W plasma source directly into the unit, enabling effective and uniform surface pre-treatment before parylene deposition.

Modular Chamber Volumes to Match Application Needs

• Offers flexible options for process chamber volume—starting at 25 L and expandable to 35, 40, or 80 L configurations.

Detailed Chamber Geometry for Various Capacities

• 25 L: 300 mm diameter × 300 mm height
• 35 L: 300 mm diameter × 350 mm height
• 80 L: 450 mm diameter × 500 mm height

Advanced Gas Handling Capabilities

• Includes one gas channel within the chamber, with the flexibility to expand to up to three channels to support diverse process gases.

Efficient Cooling & Vacuum System Integration

• Equipped with a 4-liter electromechanical cool-trap for effective condensation management, DIN 40 ISO-KF vacuum connections, an electromagnetic solenoid valve for venting, and a robust 50 m³/h vacuum pump.

Compact & Sturdy Build

• Dimensions: 1,220 mm (L) × 1,050 mm (W) × 1,920 mm (H)
• Weight: approximately 110 kg
• Flexible Electrical Compatibility
• Operates using 3/N/PE AC power at 50 Hz, compatible with 400 V or 240 V configurations, with a maximum power consumption of 8.5 kW.
• Optional Cleanroom Configuration

Technical Data:

• Dimensions: L: 1220mm W: 1050mm H: 1920mm
• Weight: 110 KG
• Volume: 25 / 35 / 40 / 80 Liter
• Process chamber: 300mm Ø H: 300mm (25 Liter), 300mm Ø / H: 350mm (35 Liter),
• 450mm Ø, H: 500mm (80) Liter
• Plasma source: 2,45GHz, 600 Watt
• Inclusive: 1 gas channel (gas distribution system inside the process chamber), up to 3 channels possible
• Cooling system: 4 liter (electromechanical Cool-trap)
• Vacuum connection: DIN 40 ISO-KF
• Venting: electromagnetic solenoid valve
• Pump system: 50m³/h
• Electrical connection: 3/N/PE AC 50Hz 400 V / 240 V, max. 8.5 KW
