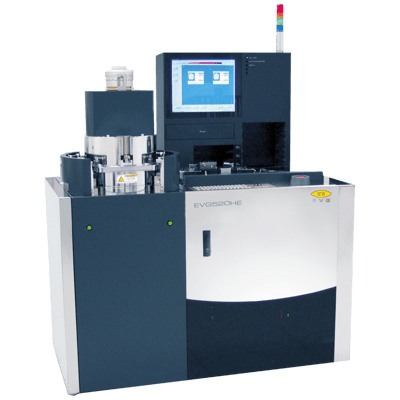

EVG®520 HE

The EVG520 HE is designed for high-precision thermoplastic substrate imprinting. This semi-automated hot embossing system can be used with substrates up to 200 mm in diameter. It is compatible with industry standard semiconductor manufacturing technologies and is configured with high-vacuum and high-contact force functions, as well as a universal embossing chamber. The EVG520 HE manages the complete selection of polymers which are suited to hot embossing.  The system provides a range of processes for high-quality nanopattern transfer, along with multiple de-embossing and high-aspect-ratio embossing options.


  • For hot embossing and nanoimprinting applications of polymer substrates and spin-on polymers
  • Automated embossing process
  • EVG's proprietary separate alignment process for optically aligned embossing and imprinting
  • Pneumatic de-embossing options
  • Software-controlled process execution
